Expert Tips for Using Sanitary Lined Valves

Introduction

Sanitary lined valves play a critical role in industries where hygiene, cleanliness, and product purity are paramount. These specialized valves are designed to meet stringent sanitary standards while providing reliable flow control in applications ranging from food and beverage processing to pharmaceutical manufacturing and biotechnology. Proper selection, installation, operation, and maintenance of sanitary lined valves are essential to ensure optimal performance, prevent contamination, and extend equipment lifespan. This comprehensive guide provides expert tips for maximizing the effectiveness of sanitary lined valves in your operations.

Understanding Sanitary Lined Valves

What Are Sanitary Lined Valves?

Sanitary lined valves are flow control devices specifically engineered for hygienic applications. They feature:

- Smooth, crevice-free internal surfaces

- Non-reactive materials that won't contaminate process media

- Easy-to-clean designs that meet sanitary standards

- Specialized linings that prevent product buildup and bacterial growth

These valves are constructed to meet rigorous industry standards such as 3-A, EHEDG, FDA, and USDA requirements for sanitary equipment.

Common Types of Sanitary Lined Valves

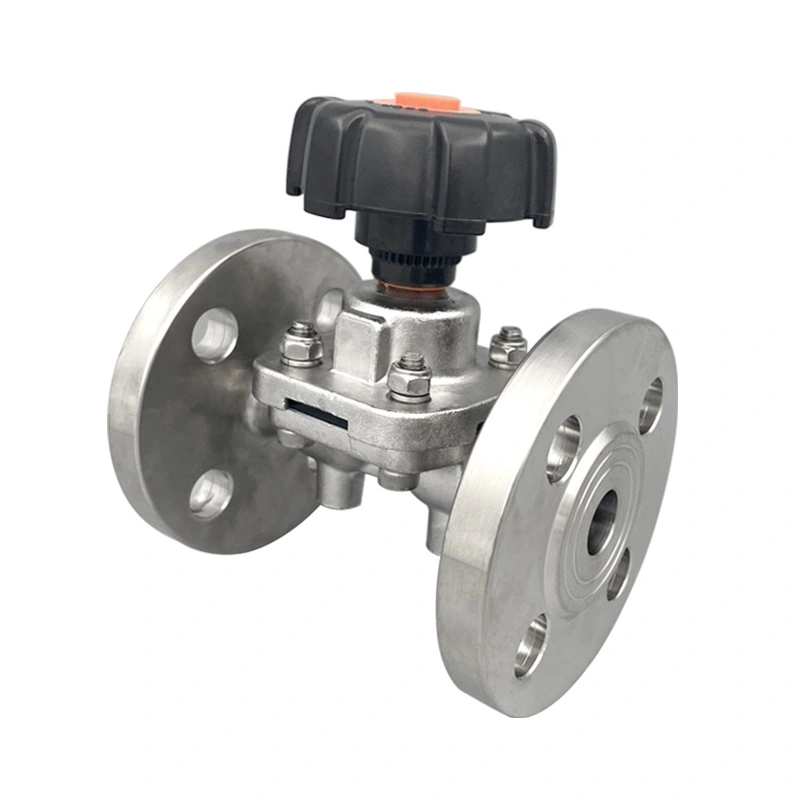

1. Diaphragm Valves: Excellent for sterile applications with their smooth flow path and complete isolation of the process media from mechanical components.

2. Butterfly Valves: Popular for their compact design and quick operation, with lined versions offering sanitary performance.

3. Ball Valves: Sanitary versions feature polished surfaces and special seat designs to prevent product buildup.

4. Check Valves: Prevent backflow while maintaining sanitary conditions in the piping system.

5. Plug Valves: Used in some sanitary applications where positive shut-off is required.

Selection Criteria for Sanitary Lined Valves

Material Compatibility

1. Lining Materials: Common options include:

- PTFE (Polytetrafluoroethylene): Excellent chemical resistance

- PFA (Perfluoroalkoxy): Similar to PTFE but with better formability

- EPDM (Ethylene Propylene Diene Monomer): Good for steam and hot water

- FKM (Fluoroelastomer): Superior chemical resistance

2. Body Materials: Typically stainless steel (304 or 316L) with electropolished finishes.

3. Consider process media: Ensure all wetted materials are compatible with the product being handled.

Size and Pressure Considerations

1. Proper Sizing: Oversized valves can lead to poor control and product stagnation, while undersized valves create excessive pressure drops.

2. Pressure Ratings: Must accommodate both operating pressure and any cleaning/sanitization pressures.

3. Temperature Range: Verify the valve can handle both process and cleaning temperatures.

Connection Types

1. Tri-Clamp: Most common sanitary connection, allowing for quick disassembly.

2. Butt Weld: Provides the most hygienic permanent connection.

3. Flanged: Used in some larger sanitary applications.

4. Threaded: Generally avoided in true sanitary applications due to potential for contamination.

Installation Best Practices

Pre-Installation Preparation

1. Inspect Components: Check for any damage, proper finishes, and cleanliness before installation.

2. Cleanliness Protocol: Follow proper cleaning procedures for all components before installation.

3. Gasket Selection: Use only approved sanitary gaskets compatible with your process.

4. Orientation: Install valves in the correct orientation (especially important for check valves).

Proper Installation Techniques

1. Alignment: Ensure proper alignment with piping to avoid stress on the valve body.

2. Torque Specifications: Follow manufacturer recommendations for clamp or bolt tightening.

3. Dead Leg Considerations: Position valves to minimize dead legs where product can accumulate.

4. Accessibility: Install valves where they can be easily operated, maintained, and inspected.

Post-Installation Verification

1. Leak Testing: Perform appropriate pressure tests to verify integrity.

2. Operational Check: Verify proper opening/closing before introducing product.

3. Cleanliness Verification: Confirm no contaminants were introduced during installation.

Operation Guidelines

Standard Operating Procedures

1. Smooth Operation: Avoid rapid opening/closing that could cause water hammer.

2. Position Verification: For automated valves, confirm full open/close positions.

3. Flow Control: When used for throttling, maintain within recommended operating ranges.

4. Pressure Considerations: Be aware of pressure differentials across the valve.

Cleaning and Sanitization Procedures

1. CIP (Clean-in-Place) Compatibility: Ensure the valve design is suitable for your CIP processes.

2. Chemical Compatibility: Verify all cleaning agents are compatible with valve materials.

3. Temperature Limits: Don't exceed maximum temperature ratings during cleaning.

4. Drainage: Ensure valves can fully drain to prevent cleaning solution accumulation.

5. Inspection Points: Include valves in regular inspection routines during cleaning cycles.

Maintenance Strategies

Preventive Maintenance

1. Scheduled Inspections: Regular checks for wear, leaks, or performance issues.

2. Lubrication: If required, use only approved sanitary lubricants.

3. Gasket Replacement: Replace gaskets at recommended intervals or when showing signs of wear.

4. Actuator Maintenance: For automated valves, follow actuator maintenance schedules.

Common Maintenance Tasks

1. Diaphragm Replacement: For diaphragm valves, replace diaphragms before failure occurs.

2. Seat Inspection: Check valve seats for wear or damage that could affect sealing.

3. Stem Maintenance: Lubricate and inspect stems in appropriate valve types.

4. Liner Inspection: Examine liners for cracks, swelling, or other signs of deterioration.

Troubleshooting Common Issues

1. Leakage: Identify whether leaks are internal or external and address accordingly.

2. Sticking/Operation Issues: May indicate material buildup or mechanical problems.

3. Flow Restrictions: Could signal liner deformation or foreign material obstruction.

4. Contamination Concerns: Investigate any signs of product contamination related to valve materials.

Special Considerations for Different Industries

Food and Beverage Applications

1. Product Characteristics: Consider viscosity, particulates, and cleaning requirements.

2. Allergen Control: Special procedures may be needed for allergen-containing products.

3. Taste/Smell Transfer: Ensure materials won't affect product organoleptic properties.

Pharmaceutical and Biotech Applications

1. Sterility Requirements: More stringent requirements for aseptic processing.

2. Validation Needs: Documentation requirements for critical processes.

3. Extractables/Leachables: Important considerations for product purity.

Dairy Processing

1. Creaming/Separation: Valve design should minimize product separation.

2. High-Fat Products: Special considerations for cleaning effectiveness.

3. Temperature Sensitivity: Proper handling of heat-sensitive dairy products.

Advanced Tips for Optimal Performance

Automation Integration

1. Position Feedback: Consider valves with position indicators for automated systems.

2. Speed Control: Adjust actuation speed to prevent water hammer.

3. Integration with CIP: Ensure automation supports proper cleaning cycles.

Specialized Applications

1. Aseptic Processing: Requires valves capable of maintaining sterility.

2. High-Purity Water: Special considerations for ultrapure water systems.

3. Slurries/High Solids: Valve designs that handle challenging media without clogging.

Performance Optimization

1. Pressure Drop Analysis: Evaluate system pressure drops to optimize valve selection.

2. Energy Efficiency: Consider how valve choices affect pumping requirements.

3. Product Recovery: Design systems to minimize product loss during valve operation.

Safety Considerations

Personnel Safety

1. Lockout/Tagout: Proper procedures for maintenance activities.

2. Hot Surfaces: Awareness of valves in high-temperature processes.

3. Chemical Exposure: Protection when handling valves in chemical processes.

Product Safety

1. Contamination Prevention: Procedures to avoid foreign material introduction.

2. Cross-Contamination: Controls for products with allergen concerns.

3. Material Migration: Monitoring for any liner degradation affecting product.

Regulatory Compliance

Industry Standards

1. 3-A Sanitary Standards: Important for food, dairy, and beverage applications.

2. EHEDG: European standards for hygienic equipment design.

3. FDA Regulations: Compliance with food and drug contact materials requirements.

4. USDA: Requirements for meat and poultry processing applications.

Documentation Requirements

1. Material Certifications: Maintain proper documentation for all wetted materials.

2. Inspection Records: Keep detailed maintenance and inspection logs.

3. Change Control: Document any modifications to valve systems.

Emerging Trends and Future Developments

Smart Valve Technology

1. Condition Monitoring: Sensors for predictive maintenance.

2. Wireless Connectivity: Remote monitoring capabilities.

3. Data Integration: Valve performance data in overall system analytics.

Advanced Materials

1. Improved Liners: Longer-lasting, more chemical-resistant materials.

2. Coatings: Advanced surface treatments for better cleanability.

3. Composite Materials: Combining strength with chemical resistance.

Sustainability Focus

1. Water Conservation: Valve designs that minimize cleaning water use.

2. Energy Efficiency: Reduced pressure drop designs.

3. Recyclability: Materials that can be recycled at end of life.

Conclusion

Proper implementation of sanitary lined valves requires attention to detail at every stage - from selection and installation to operation and maintenance. By following these expert tips, you can ensure your Sanitary Valves perform reliably while meeting the stringent hygiene requirements of your industry. Regular training for personnel, adherence to manufacturer recommendations, and staying informed about technological advancements will help you maintain an effective sanitary valve system that protects product quality and operational efficiency. Remember that investing in quality valves and proper maintenance practices ultimately saves money by reducing downtime, preventing product loss, and avoiding costly contamination incidents.
