How to Clean and Sterilize Sanitary Valves Effectively

Introduction

Sanitary valves are critical components in industries such as food and beverage, pharmaceuticals, biotechnology, and dairy processing, where hygiene and sterility are paramount. Proper cleaning and sterilization of these valves ensure product safety, prevent contamination, and maintain operational efficiency. This guide provides a comprehensive approach to effectively cleaning and sterilizing sanitary valves, covering methods, best practices, and key considerations.

---

1. Understanding Sanitary Valves

Sanitary valves are designed to meet strict hygiene standards, featuring smooth surfaces, minimal crevices, and materials resistant to corrosion and bacterial growth. Common types include:

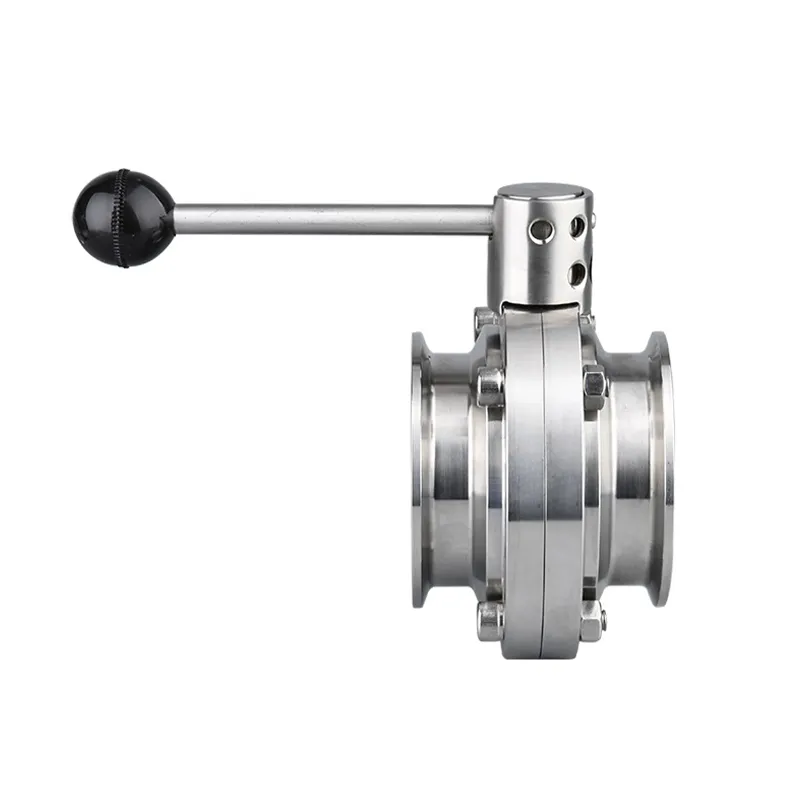

- Butterfly Valves – Compact and easy to clean, often used in liquid processing.

- Ball Valves – Provide tight shut-off and are suitable for high-purity applications.

- Diaphragm Valves – Prevent product contact with internal components, ideal for sterile processes.

- Check Valves – Allow unidirectional flow, reducing contamination risks.

Materials like stainless steel (316L), PTFE, and EPDM are commonly used due to their durability and cleanability.

---

2. Importance of Cleaning and Sterilization

Proper maintenance of sanitary valves is essential for:

- Preventing microbial contamination – Bacteria, mold, and biofilms can thrive in improperly cleaned valves.

- Ensuring product quality – Residues can alter taste, texture, or chemical composition.

- Complying with regulations – Industries must follow FDA, EHEDG, 3-A Sanitary Standards, and ISO 9001 guidelines.

- Extending valve lifespan – Regular cleaning reduces wear and corrosion.

---

3. Cleaning Methods for Sanitary Valves

A. Manual Cleaning

Manual cleaning is suitable for small-scale operations or when automated systems are unavailable.

Steps:

1. Disassembly – Remove valve components (seals, diaphragms, gaskets) as per manufacturer guidelines.

2. Pre-rinse – Use warm water (40-60°C) to remove loose debris.

3. Chemical cleaning – Apply a mild detergent or alkaline cleaner (pH 9-11) with a soft brush or sponge.

4. Scrubbing – Focus on crevices, seals, and hard-to-reach areas.

5. Rinsing – Use purified water (RO or DI water) to remove detergent residues.

6. Drying – Air-dry or use lint-free cloths to prevent water spots.

Best Practices:

- Avoid abrasive tools that can scratch surfaces.

- Use food-grade lubricants for reassembly.

- Follow SOPs (Standard Operating Procedures) for consistency.

B. Clean-in-Place (CIP) Systems

CIP is an automated method used in large-scale processing plants.

Process:

1. Pre-rinse – Removes bulk residues with water.

2. Alkaline wash – Circulates a caustic solution (NaOH, 1-2%) at 70-80°C for 15-30 minutes.

3. Intermediate rinse – Flushes out alkaline solution.

4. Acid wash (optional) – Removes mineral deposits (e.g., nitric or phosphoric acid).

5. Final rinse – Uses sanitized water to eliminate traces of chemicals.

6. Sterilization – Steam or chemical sanitization follows.

Advantages:

- Reduces manual labor.

- Ensures consistent cleaning.

- Minimizes downtime.

Considerations:

- Verify flow rates and turbulence for effective cleaning.

- Monitor chemical concentrations and temperatures.

C. Ultrasonic Cleaning

Ultrasonic cleaning uses high-frequency sound waves to remove contaminants from small valve parts.

Procedure:

1. Submerge disassembled parts in a tank with a cleaning solution.

2. Activate ultrasonic waves (20-40 kHz) for 5-10 minutes.

3. Rinse and dry components.

Benefits:

- Effective for intricate parts.

- Non-abrasive and thorough.

---

4. Sterilization Techniques

A. Steam Sterilization (Autoclaving)

- Temperature: 121°C (250°F) for 15-20 minutes or 134°C (273°F) for 3-5 minutes.

- Pressure: 15 psi (1 bar).

- Suitable for: Stainless steel and heat-resistant elastomers.

Steps:

1. Ensure valves are clean and dry.

2. Place in an autoclave or steam-in-place (SIP) system.

3. Follow cycle parameters and cool before handling.

Limitations:

- Not suitable for all materials (e.g., some plastics degrade).

B. Chemical Sterilization

Common sanitizers include:

- Peracetic Acid (PAA) – Effective against bacteria, spores, and viruses (0.1-0.5% concentration).

- Hydrogen Peroxide (H₂O₂) – Used in vapor or liquid form (3-6% concentration).

- Chlorine Dioxide (ClO₂) – Used in water treatment (0.2-0.5 ppm).

Procedure:

1. Circulate or spray the sanitizing solution.

2. Allow sufficient contact time (5-30 minutes).

3. Rinse thoroughly if required.

C. Dry Heat Sterilization

- Temperature: 160-180°C (320-356°F) for 2 hours.

- Best for: Metal components that cannot tolerate moisture.

D. Gamma Radiation & Ethylene Oxide (ETO)

- Used for single-use or disposable valve components.

- Requires specialized facilities.

---

5. Validation and Verification

To ensure cleaning and sterilization effectiveness:

- ATP Testing – Measures organic residues.

- Microbial Swabs – Detects bacterial contamination.

- Visual Inspection – Checks for residues or damage.

- TOC (Total Organic Carbon) Analysis – Validates cleaning in pharmaceutical applications.

---

6. Maintenance and Storage

- Regular Inspections – Check for wear, leaks, or corrosion.

- Proper Storage – Keep valves in a clean, dry environment.

- Lubrication – Use FDA-approved lubricants for moving parts.

- Documentation – Maintain logs of cleaning cycles and inspections.

---

7. Common Mistakes to Avoid

1. Incomplete disassembly – Leads to hidden contamination.

2. Using harsh chemicals – Can degrade seals and gaskets.

3. Skipping rinsing steps – Leaves harmful residues.

4. Ignoring manufacturer guidelines – May void warranties or cause damage.

---

Conclusion

Effective cleaning and sterilization of sanitary valves are essential for maintaining hygiene, compliance, and operational efficiency. By following proper procedures—whether manual, CIP, or ultrasonic—and validating results through testing, industries can ensure product safety and prolong valve lifespan. Regular maintenance and adherence to best practices further enhance performance, reducing contamination risks and downtime.

By implementing these strategies, facilities can achieve optimal sanitary conditions, meeting both regulatory and quality standards.
