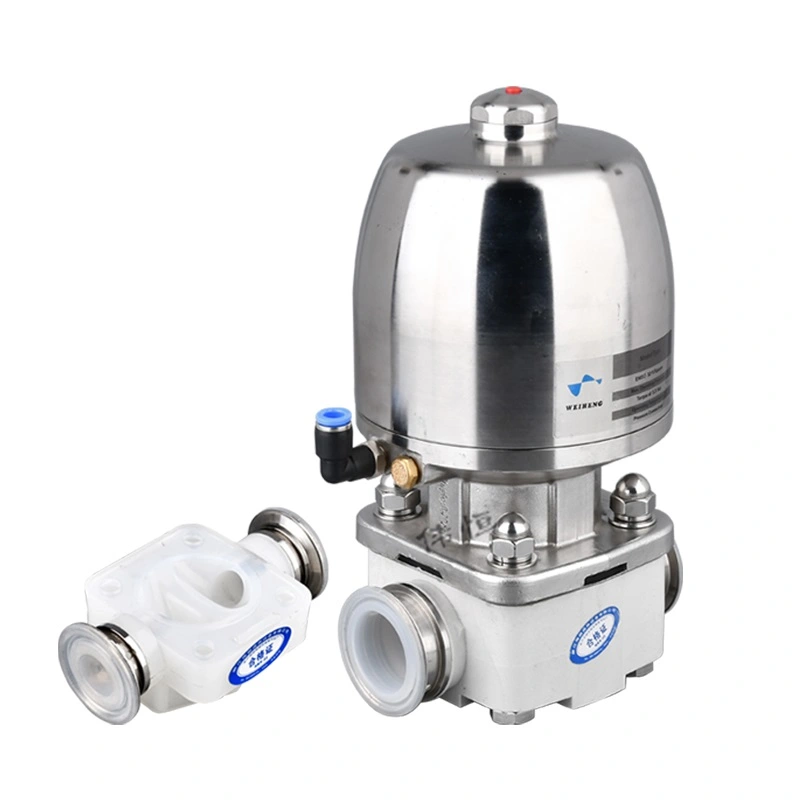

How to Specify a Sanitary Fluorine-Lined Diaphragm Valve

Introduction

Sanitary fluorine-lined diaphragm valves are critical components in industries requiring high-purity fluid handling, such as pharmaceuticals, biotechnology, food and beverage processing, and semiconductor manufacturing. These valves combine the corrosion resistance of fluoropolymer linings with the hygienic design necessary for clean processes. Proper specification ensures optimal performance, compliance with industry standards, and long-term reliability.

This comprehensive guide covers all essential aspects of specifying sanitary fluorine-lined diaphragm valves, including materials, design considerations, performance requirements, and validation needs.

1. Understanding the Application Requirements

1.1 Process Conditions

Begin by thoroughly understanding your process requirements:

- Fluid characteristics: Identify the chemical composition, concentration, temperature, and any abrasive or viscous properties

- Temperature range: Both operating and sterilization temperatures

- Pressure requirements: Working pressure, pressure drops, and potential surge pressures

- Flow characteristics: Required flow rates and any special flow pattern needs

- Cycle frequency: How often the valve will actuate in normal operation

1.2 Industry Standards and Regulations

Determine applicable standards:

- Pharmaceutical: ASME BPE, FDA CFR 21, EU GMP, USP Class VI

- Food & Beverage: 3-A Sanitary Standards, EHEDG, NSF

- Semiconductor: SEMI standards

- General: ISO 9001, ISO 14001

1.3 Cleanliness Requirements

Specify the necessary cleanliness level:

- Surface finish requirements (typically Ra ≤ 0.8 μm for sanitary applications)

- Sterilization methods (SIP, CIP, autoclave, gamma irradiation)

- Particulate control needs

- Extractables and leachables limitations

2. Material Selection

2.1 Body Materials

For sanitary applications, common body materials include:

- 316L stainless steel: Most common, excellent corrosion resistance

- 316L VAR stainless steel: For ultra-high purity applications

- Electropolished finishes: For improved cleanability and corrosion resistance

2.2 Fluoropolymer Lining Options

Select the appropriate fluoropolymer based on chemical resistance and temperature needs:

- PTFE (Polytetrafluoroethylene): Excellent chemical resistance, temperature range -200°C to +260°C

- PFA (Perfluoroalkoxy): Similar to PTFE but with better formability and higher purity

- FEP (Fluorinated Ethylene Propylene): Good chemical resistance, transparent, temperature up to 205°C

- ETFE (Ethylene Tetrafluoroethylene): Excellent mechanical properties, temperature up to 150°C

2.3 Diaphragm Materials

Diaphragm selection is critical for performance:

- EPDM: Good for general purposes, temperature up to 120°C

- FFKM (Perfluoroelastomer): Excellent chemical resistance, high temperature capability

- Silicone: Good for high purity, temperature resistant

- PTFE/PFA: For most aggressive chemicals

2.4 Gasket and Seal Materials

Consider:

- EPDM, FKM, or FFKM for elastomeric seals

- PTFE or PFA for non-elastomeric options

- Metal seals for ultra-high purity applications

3. Valve Design Considerations

3.1 Connection Types

Select appropriate sanitary connections:

- Tri-clamp (ASME BPE): Most common for pharmaceutical applications

- DIN/SMS: Common in European food applications

- Butt-weld: For permanent installations requiring minimal dead space

- Flanged: For larger pipe sizes

3.2 Valve Size and Flow Characteristics

Consider:

- Port size: Match to piping system (common sizes: 1/2" to 6")

- Flow coefficient (Cv): Ensure adequate flow capacity

- Pressure drop: Important for viscous fluids or long pipe runs

- Full bore design: Preferred for CIP applications

3.3 Actuation Methods

Choose appropriate actuation:

- Manual: Handwheel or lever operation

- Pneumatic: For automated systems, specify air requirements

- Electric: For precise control and integration with control systems

- Hydraulic: For high-pressure applications

3.4 Hygienic Design Features

Essential sanitary features include:

- Drainability: No fluid traps or pockets

- Cleanability: Smooth surfaces, minimal crevices

- Dead-leg free: Minimize areas where fluid can stagnate

- Sterilizable: Compatible with process sterilization methods

4. Performance Specifications

4.1 Pressure Ratings

Define:

- Maximum working pressure

- Pressure rating at operating temperature

- Burst pressure requirements

- Vacuum rating (if applicable)

4.2 Temperature Ratings

Specify:

- Continuous operating temperature range

- Maximum temperature for short-term exposure

- Minimum temperature for cryogenic applications

4.3 Leakage Requirements

Define acceptable leakage rates:

- Bubble-tight (zero detectable leakage)

- Industry standard leakage rates

- Fugitive emissions requirements (if applicable)

4.4 Cycle Life

Specify expected:

- Total operational cycles

- Maintenance intervals

- Diaphragm replacement frequency

5. Quality and Validation Requirements

5.1 Documentation Needs

Require:

- Material certifications (mill test reports, certificates of compliance)

- Traceability documentation

- Surface finish verification

- Cleanliness certifications

5.2 Testing Requirements

Specify necessary testing:

- Hydrostatic/pneumatic pressure testing

- Helium leak testing (for high purity applications)

- Particle count testing

- Extractables testing (for pharmaceutical applications)

5.3 Validation Support

Request:

- Installation Qualification (IQ) documentation

- Operational Qualification (OQ) support

- Performance Qualification (PQ) assistance

- Risk assessment documentation (if required)

6. Installation and Maintenance Considerations

6.1 Installation Requirements

Specify:

- Orientation requirements (for proper drainage)

- Support requirements

- Access needs for maintenance

- Piping alignment considerations

6.2 Maintenance Requirements

Define:

- Recommended spare parts

- Maintenance intervals

- Diaphragm replacement procedures

- Lubrication requirements (if any)

6.3 Operator Training

Request:

- Installation training

- Operation training

- Maintenance training

- Troubleshooting guides

7. Cost Considerations

7.1 Total Cost of Ownership

Evaluate:

- Initial purchase cost

- Installation costs

- Maintenance costs

- Expected service life

7.2 Value Engineering Options

Consider:

- Alternative materials that meet requirements at lower cost

- Standard vs. custom designs

- Bulk purchase discounts

- Long-term service agreements

8. Supplier Evaluation

8.1 Technical Capabilities

Assess:

- Engineering support

- Customization capabilities

- Lead times

- Testing facilities

8.2 Quality Systems

Verify:

- Quality certifications (ISO 9001, etc.)

- Inspection procedures

- Corrective action processes

- Continuous improvement programs

8.3 Industry Experience

Evaluate:

- References in your industry

- Project portfolio

- Technical publications

- Participation in standards organizations

9. Ordering Specifications

When preparing your purchase specification, include:

1. General Information

- Project name/number

- Quantity required

- Required delivery date

2. Design Requirements

- Valve type and size

- Connection type and facing

- Actuation method

- Materials of construction

- Surface finishes

3. Performance Requirements

- Pressure and temperature ratings

- Flow capacity

- Leakage rates

- Cycle life expectations

4. Testing and Documentation

- Required tests and certifications

- Documentation package requirements

- Marking and identification needs

5. Packaging and Shipping

- Special packaging requirements

- Cleanliness requirements for shipment

- Preservation requirements

6. Commercial Terms

- Incoterms

- Payment terms

- Warranty requirements

Conclusion

Specifying a sanitary fluorine-lined diaphragm valve requires careful consideration of numerous technical, regulatory, and operational factors. By systematically addressing each aspect outlined in this guide—from material selection to validation requirements—you can ensure optimal valve performance that meets your process needs while complying with industry standards.

Remember that the most cost-effective valve is not necessarily the one with the lowest purchase price, but rather the one that provides reliable, long-term service with minimal maintenance requirements. Investing time in proper specification will pay dividends in system performance, regulatory compliance, and total cost of ownership.

Always consult with qualified engineers and valve specialists when specifying critical components for sanitary applications, particularly when dealing with aggressive chemicals, extreme temperatures, or stringent purity requirements.
