Integrating Sanitary Electric Valves with PLCs and SCADA Systems

Introduction

The integration of sanitary electric valves with Programmable Logic Controllers (PLCs) and Supervisory Control and Data Acquisition (SCADA) systems represents a critical advancement in modern industrial automation, particularly in industries requiring stringent hygiene standards such as food and beverage processing, pharmaceuticals, biotechnology, and chemical manufacturing. This comprehensive integration enables precise control, real-time monitoring, and enhanced process efficiency while maintaining the highest levels of cleanliness and compliance with regulatory standards.

This white paper explores the technical aspects, benefits, challenges, and implementation strategies for successfully integrating sanitary electric valves with PLC and SCADA systems. The discussion covers valve selection criteria, communication protocols, control strategies, system architecture, and best practices for maintaining optimal performance in sanitary applications.

Understanding Sanitary Electric Valves

Definition and Characteristics

Sanitary electric valves are specialized actuators designed for applications requiring ultra-clean processing environments. These valves differ from standard industrial valves in several key aspects:

- Material Construction: Typically made from 316L stainless steel or other corrosion-resistant alloys with polished surfaces (usually Ra ≤ 0.8 μm) to prevent bacterial growth and facilitate cleaning

- Design Features: Include crevice-free designs, drainability, and clean-in-place (CIP) compatibility

- Sealing Mechanisms: Use FDA-approved elastomers like EPDM, FKM, or PTFE for gaskets and seals

- Actuation Types: Include electric solenoid valves, motorized ball valves, and electric pinch valves

Common Types in Industrial Applications

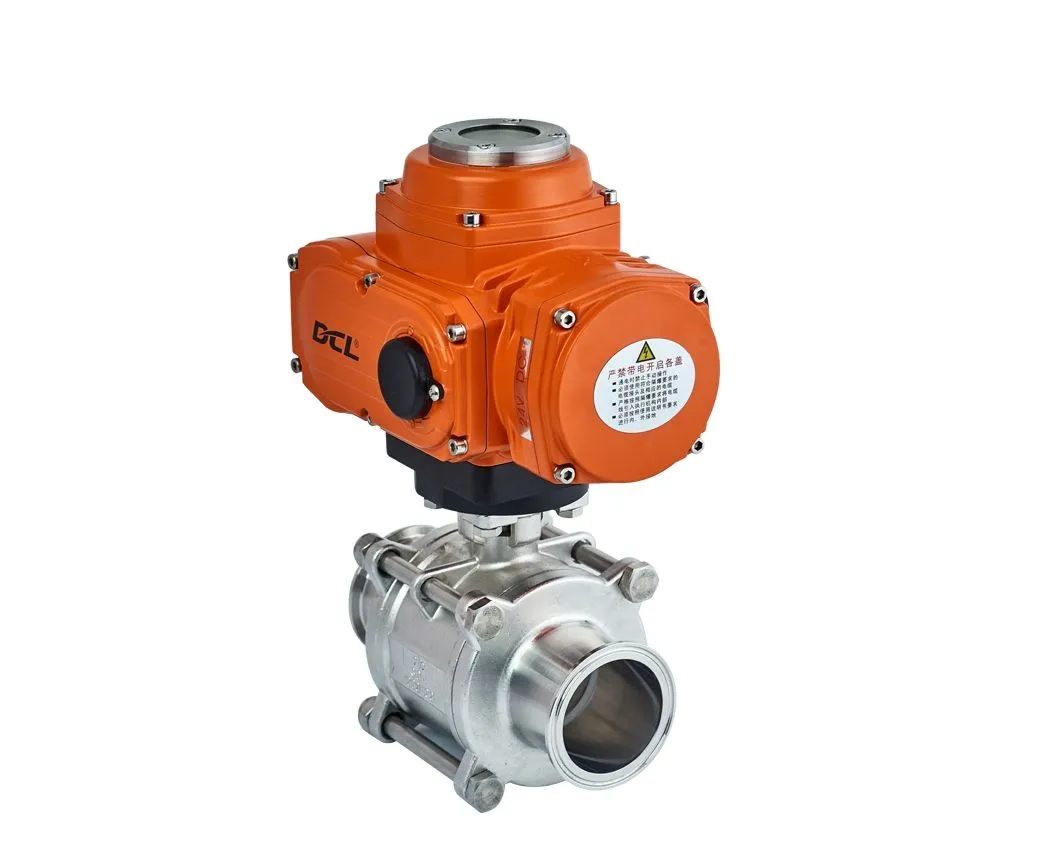

1. sanitary electric ball valves: Offer quick operation and bubble-tight shut-off, commonly used for on/off control

2. Sanitary Electric Butterfly Valves: Provide cost-effective solutions for larger pipe diameters

3. Sanitary Electric Diaphragm Valves: Ideal for sterile applications with minimal dead space

4. Sanitary Electric Pinch Valves: Suitable for handling slurries or viscous products without contamination

PLC Fundamentals for Valve Control

Role of PLCs in Valve Automation

Programmable Logic Controllers serve as the primary control hardware for sanitary electric valve systems by:

- Executing predetermined control algorithms

- Processing input signals from sensors and instruments

- Generating output signals to valve actuators

- Implementing safety interlocks and sequence control

Key PLC Functions for Valve Control

1. Discrete Control: Basic on/off operation of solenoid valves

2. Modulating Control: Precise positioning of proportional valves

3. Sequence Logic: Coordinating multiple valves in complex processes

4. Timing Functions: Implementing pulse-width modulation (PWM) for energy efficiency

5. Fault Detection: Monitoring valve operation for failures or abnormal conditions

PLC Programming Considerations

Effective valve control programming requires:

- Proper debounce timing for position feedback signals

- Fail-safe position configuration (normally open/closed)

- Stroke time compensation for aging equipment

- Current monitoring for detecting motor stalls or coil failures

- Diagnostic routines for predictive maintenance

SCADA System Integration

SCADA Architecture for Valve Monitoring

Supervisory Control and Data Acquisition systems provide the human-machine interface (HMI) and data management layer for Sanitary Valve networks:

1. Data Acquisition: Collecting valve status, position feedback, and diagnostic information

2. Visualization: Graphical representation of valve states and process flows

3. Alarm Management: Notifying operators of valve malfunctions or process deviations

4. Historical Trending: Recording valve operation data for performance analysis

5. Recipe Management: Storing and recalling valve configuration sets for different products

Advanced SCADA Features for Valve Systems

Modern SCADA implementations offer specialized functions for sanitary applications:

- CIP Cycle Monitoring: Tracking and documenting cleaning procedures

- Material Tracking: Ensuring proper valve configurations for different product streams

- Regulatory Compliance Reporting: Generating documentation for FDA, EHEDG, or 3-A standards

- Remote Access: Enabling off-site monitoring and troubleshooting

Communication Protocols and Networking

Fieldbus Options for Valve Integration

Selecting appropriate communication protocols is critical for reliable system operation:

1. Traditional I/O: 4-20mA analog and 24VDC discrete signals for basic control

2. DeviceNet: Cost-effective solution for small to medium valve networks

3. PROFIBUS PA/DP: Robust protocol for process automation applications

4. EtherNet/IP: High-speed communication for complex systems

5. Modbus TCP/IP: Simple implementation for SCADA connectivity

6. AS-Interface: Simplified wiring for large numbers of discrete devices

Wireless Solutions

Emerging wireless technologies offer advantages for sanitary applications:

- Reduced cable penetrations in cleanroom environments

- Easier retrofitting in existing facilities

- Enhanced mobility for portable equipment

- Implementation considerations include battery life, data security, and interference potential

System Design Considerations

Valve Selection Criteria

Choosing appropriate sanitary electric valves requires evaluation of:

1. Process Requirements:

- Flow characteristics (Cv values)

- Pressure and temperature ratings

- Media compatibility (including cleaning chemicals)

- Hygienic design certifications (3-A, EHEDG, FDA)

2. Control Requirements:

- Response time specifications

- Positioning accuracy

- Fail-safe requirements

- Feedback options (position, torque, temperature)

3. Environmental Factors:

- Area classification (explosion-proof, washdown)

- Ambient temperature range

- Sanitation method (CIP, SIP, manual cleaning)

Electrical Integration Challenges

Special considerations for sanitary applications include:

1. Explosion Protection: ATEX or IECEx ratings for hazardous areas

2. Ingress Protection: IP69K ratings for high-pressure washdown

3. Electrical Isolation: Galvanic separation for sensitive equipment

4. Grounding: Proper grounding to prevent electrolytic corrosion

5. Cable Management: Strain relief and proper routing for hygienic areas

Mechanical Installation Best Practices

Proper valve installation affects both performance and cleanability:

1. Piping Configuration: Ensuring proper drainage and avoiding dead legs

2. Support Structures: Preventing stress on valve bodies

3. Accessibility: Providing adequate space for maintenance

4. Orientation: Correct mounting position for optimal operation and cleaning

5. Identification: Clear labeling for maintenance and operational staff

Control Strategies for Sanitary Applications

Basic Control Approaches

1. On/Off Control:

- Simple solenoid operation

- Used for diverting flow or basic shut-off

- Requires proper sizing to prevent water hammer

2. Modulating Control:

- Precise flow regulation

- Requires position feedback and PID tuning

- Common in batching and mixing applications

Advanced Control Techniques

1. Cascade Control: Coordinating multiple valves for temperature or pressure regulation

2. Ratio Control: Maintaining proportional flows between ingredients

3. Adaptive Control: Automatically adjusting parameters for varying process conditions

4. Predictive Control: Using historical data to anticipate valve maintenance needs

Safety Considerations

Critical safety measures for sanitary valve systems include:

1. Fail-Safe Design: Ensuring valves move to safe positions during power loss

2. Redundancy: Critical valves with backup actuators or control paths

3. Interlocks: Preventing improper valve sequencing

4. Emergency Shutdown: Rapid closure capability for hazardous situations

Validation and Compliance

Regulatory Requirements

Sanitary valve systems must comply with various industry standards:

1. Food and Beverage: FDA 21 CFR, EHEDG, 3-A Sanitary Standards

2. Pharmaceutical: cGMP, GAMP 5, ISPE guidelines

3. Biotechnology: ASME BPE, USP<797>requirements

4. General Safety: IEC 61508/61511 for safety instrumented systems

Validation Documentation

Comprehensive documentation should include:

1. Design Qualification (DQ): Verifying valve specifications meet requirements

2. Installation Qualification (IQ): Confirming proper installation

3. Operational Qualification (OQ): Testing valve functionality

4. Performance Qualification (PQ): Demonstrating system performance under production conditions

Maintenance and Troubleshooting

Preventive Maintenance Program

Effective maintenance strategies for sanitary electric valves include:

1. Regular Inspection: Checking for leaks, proper operation, and cleanliness

2. Lubrication: Using food-grade lubricants where required

3. Seal Replacement: Scheduled replacement of wear components

4. Calibration: Verifying position feedback accuracy

5. Electrical Testing: Measuring coil resistance and insulation integrity

Common Failure Modes and Solutions

Typical valve issues and corrective actions:

1. Slow Operation:

- Check power supply voltage

- Inspect for mechanical binding

- Verify control signal integrity

2. Leakage:

- Examine seat and seal condition

- Verify proper torque settings

- Check for foreign material

3. Communication Failures:

- Verify network termination

- Check cable integrity

- Confirm proper addressing

4. Overheating:

- Verify duty cycle compliance

- Check ambient temperature

- Inspect for mechanical overload

Emerging Trends and Future Developments

Smart Valve Technology

Advancements in intelligent valve systems include:

1. Embedded Diagnostics: Onboard sensors for condition monitoring

2. Predictive Analytics: Machine learning algorithms for failure prediction

3. Self-Calibration: Automatic adjustment of control parameters

4. Wireless Configuration: Bluetooth or NFC for field setup

Industry 4.0 Integration

Modern developments in valve automation:

1. Digital Twins: Virtual models for simulation and optimization

2. Cloud Connectivity: Remote monitoring and data analytics

3. Augmented Reality: Maintenance assistance through AR interfaces

4. Blockchain: Secure documentation of sanitary procedures

Sustainability Initiatives

Environmental considerations driving innovation:

1. Energy-Efficient Actuators: Reduced power consumption designs

2. Water Conservation: Optimized cleaning cycle controls

3. Material Innovations: Longer-lasting seal technologies

4. Circular Economy: Improved recyclability of valve components

Conclusion

The integration of sanitary electric valves with PLC and SCADA systems represents a sophisticated approach to process automation in hygiene-critical industries. This integration enables precise control, comprehensive monitoring, and reliable operation while meeting stringent sanitary requirements. Successful implementation requires careful consideration of valve selection, control strategies, communication protocols, and regulatory compliance.

As technology advances, the convergence of traditional automation with Industry 4.0 concepts promises even greater capabilities in sanitary valve systems. Future developments in smart valves, predictive maintenance, and sustainable design will continue to enhance the performance and reliability of these critical components in hygienic processing applications.

By following the principles and best practices outlined in this document, engineers and system integrators can design, implement, and maintain sanitary valve automation systems that deliver optimal performance, regulatory compliance, and operational efficiency. The proper integration of these components forms the foundation for modern, automated hygienic processing systems that meet the ever-increasing demands for product quality, safety, and production efficiency.
