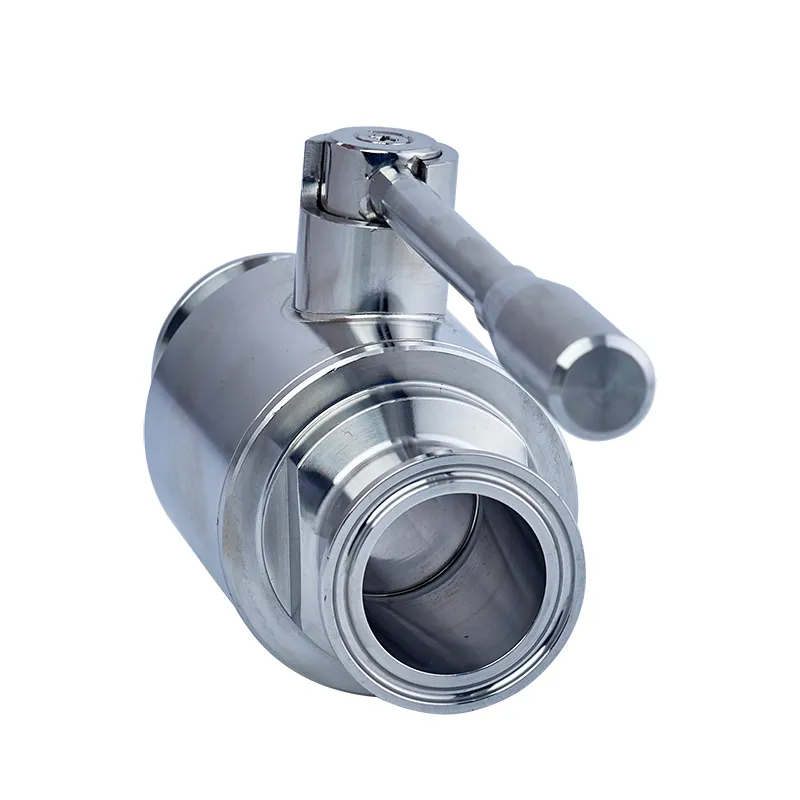

A Comprehensive Glossary of Sanitary Ball Valve Terminology

Introduction

Sanitary ball valves are essential components in industries where hygiene, cleanliness, and contamination control are critical, such as food and beverage, pharmaceuticals, biotechnology, and dairy processing. These valves are designed to meet stringent sanitary standards, ensuring smooth flow control while preventing bacterial growth and product contamination.

This glossary provides a detailed list of key terms related to sanitary ball valves, helping professionals understand their design, functionality, and applications.

---

A

Actuator – A mechanical or pneumatic device used to automate the opening and closing of a ball valve. Common types include electric, pneumatic, and hydraulic actuators.

ASME BPE (American Society of Mechanical Engineers – Bioprocessing Equipment) – A standard that defines design and material requirements for equipment used in bioprocessing, including sanitary ball valves.

ASTM (American Society for Testing and Materials) – An organization that sets material standards, including those for stainless steel and elastomers used in sanitary ball valves.

Austenitic Stainless Steel – A type of stainless steel (e.g., 304, 316L) known for its corrosion resistance and non-magnetic properties, commonly used in Sanitary Valve construction.

---

B

Ball – The spherical component inside a ball valve that rotates to control flow. In sanitary valves, the ball is often polished to a smooth finish to prevent bacterial buildup.

Bore (Port) Size – The internal diameter of the ball’s flow passage. A full-port (full-bore) valve has a bore equal to the pipeline diameter, while a reduced-port valve has a smaller bore.

Butt Weld Connection – A type of valve connection where the pipe is welded directly to the valve body, ensuring a smooth, crevice-free joint.

Butterfly Valve vs. Ball Valve – While both are quarter-turn valves, a butterfly valve uses a disc to regulate flow, whereas a ball valve uses a rotating ball. Ball valves offer better sealing and are more suitable for high-purity applications.

---

C

CIP (Clean-in-Place) – A method of cleaning sanitary valves and pipelines without disassembly, using high-velocity cleaning solutions.

Clamp Connection (Tri-Clamp, DIN 32676, SMS, RJT) – A quick-connect fitting used in sanitary systems, allowing easy disassembly for cleaning and maintenance.

Crevice-Free Design – A valve construction that eliminates gaps where bacteria or product residue could accumulate, ensuring hygienic performance.

Cv (Flow Coefficient) – A measure of a valve’s flow capacity, indicating how much fluid can pass through at a given pressure drop.

---

D

Dead Leg (Static Zone) – An area in a piping system where fluid can stagnate, increasing contamination risk. Sanitary valves are designed to minimize dead legs.

Diaphragm Seal – A secondary sealing mechanism used in some sanitary ball valves to prevent contamination from the stem area.

DIN (Deutsches Institut für Normung) – German standards organization that defines specifications for sanitary fittings, including DIN 11851 and DIN 32676.

Double Block and Bleed (DBB) – A valve design that isolates both upstream and downstream flow and allows drainage between seals for maintenance.

---

E

Electropolishing – A finishing process that removes microscopic imperfections from stainless steel surfaces, improving corrosion resistance and cleanability.

End Connection Types – Different methods of attaching valves to pipelines, including:

- Tri-Clamp (Clamp)

- Butt Weld

- Threaded (NPT, BSP)

- Flanged (DIN, SMS, ISO)

EPDM (Ethylene Propylene Diene Monomer) – A common elastomer used for seals in sanitary applications due to its chemical resistance and FDA compliance.

Extraction Proof Stem – A design feature that prevents the valve stem from being accidentally removed during operation, ensuring safety and integrity.

---

F

FDA (Food and Drug Administration) – U.S. regulatory agency that sets material safety standards for components in food, beverage, and pharmaceutical applications.

Fire-Safe Design – Valves designed to maintain sealing integrity even under extreme heat conditions, preventing leakage in case of fire.

Flush Bottom Valve – A valve designed to allow complete drainage of a tank or vessel, minimizing residual product.

Full Port (Full Bore) Valve – A valve where the ball’s bore matches the pipeline diameter, reducing pressure drop and allowing for easy cleaning.

---

G

Gasket (Seal) – A flexible component (often PTFE, EPDM, or FKM) that ensures a leak-proof seal between valve components.

GMP (Good Manufacturing Practice) – Quality standards ensuring that products are consistently produced and controlled according to industry regulations.

---

H

Hygienic Design – Valve construction that minimizes contamination risks by eliminating dead spaces, using smooth surfaces, and allowing easy cleaning.

Hastelloy® – A high-performance alloy used in corrosive or high-temperature applications where standard stainless steel may not suffice.

---

I

ISO 2852 – International standard for dimensions and materials of stainless steel tube fittings used in hygienic applications.

Integral Seat – A valve seat that is permanently bonded to the valve body, reducing potential leak paths.

---

L

Lug Style Valve – A valve with threaded inserts for bolting between flanges, allowing easy removal without disturbing the pipeline.

Low-Particle Generation – A design feature in sanitary valves that minimizes the release of particulates, critical in pharmaceutical and semiconductor industries.

---

M

Material Certifications – Documentation (e.g., 3.1 Mill Certificate, FDA, USP Class VI) proving that valve materials meet industry standards.

Multi-Port Valve – A ball valve with multiple flow paths (e.g., 3-way, 4-way) for diverting or mixing flows in sanitary systems.

---

O

Orbital Welding – An automated welding technique used in sanitary systems to ensure high-quality, contamination-free joints.

O-Ring – A circular elastomeric seal used in valve stems and connections to prevent leaks.

---

P

Passivation – A chemical treatment that enhances stainless steel’s corrosion resistance by removing free iron from the surface.

PTFE (Polytetrafluoroethylene) – A chemically inert polymer used for seals and linings in sanitary valves due to its non-stick and high-temperature resistance.

Pneumatic Actuation – The use of compressed air to operate a ball valve automatically.

---

R

Ra (Surface Roughness) – A measure of surface smoothness, critical in sanitary valves to prevent bacterial adhesion (typically < 0.8 µm for hygienic applications).

Reduced Port Valve – A valve where the bore is smaller than the pipeline, resulting in higher flow resistance but lower cost.

RJT (Ring Joint Type) Connection – A sanitary fitting with a grooved ring gasket for a secure seal.

---

S

Sanitary Fitting – A connection type (e.g., Tri-Clamp, DIN 11851) designed for easy cleaning and contamination prevention.

SIP (Steam-in-Place) – A sterilization method using steam to sanitize valves and piping without disassembly.

Stem Seal – A sealing mechanism around the valve stem to prevent leakage and contamination.

Stellite® – A hard alloy used for wear-resistant valve seats in high-pressure or abrasive applications.

---

T

Teflon® (PTFE) – A brand name for PTFE, commonly used for valve seats and seals.

Three-Piece Valve – A ball valve design with a separable body for easy maintenance and cleaning.

Two-Piece Valve – A valve with a two-part body, offering a balance between durability and serviceability.

---

V

Viton® (FKM) – A fluoroelastomer used for high-temperature and chemical-resistant seals.

Valve Seat – The sealing surface between the ball and valve body, often made from PTFE or other resilient materials.

---

W

Wetted Parts – Components in direct contact with the process fluid, requiring materials that meet sanitary and corrosion-resistant standards.

---

Conclusion

Understanding the terminology of sanitary ball valves is crucial for selecting the right components for hygienic applications. This glossary provides a foundation for professionals working in industries where cleanliness, contamination control, and regulatory compliance are paramount.

By familiarizing themselves with these terms, engineers, technicians, and procurement specialists can make informed decisions when designing, maintaining, or upgrading sanitary fluid handling systems.
