Sanitary Valves in Pharmaceutical and Biotech Applications

Introduction

Sanitary valves play a critical role in pharmaceutical and biotechnology industries, where maintaining product purity and preventing contamination are paramount requirements. These specialized valves are designed to meet stringent hygienic standards, ensuring the integrity of sensitive processes involving drugs, vaccines, biologics, and other therapeutic products. The unique demands of these industries have led to the development of valves with specific characteristics that differentiate them from conventional industrial valves.

This comprehensive examination explores the various types of sanitary valves, their design principles, material considerations, validation requirements, and specific applications within pharmaceutical and biotech operations. We will also discuss the regulatory framework governing these components and emerging trends in sanitary valve technology.

Fundamentals of Sanitary Valve Design

Hygienic Design Principles

Sanitary valves for pharmaceutical applications adhere to strict hygienic design principles that prioritize cleanability and prevent microbial growth. Key features include:

- Smooth surfaces: All wetted surfaces must have a surface roughness (Ra) typically below 0.8 μm to prevent particle accumulation and facilitate cleaning

- Drainability: Designs must allow complete drainage to prevent liquid pooling that could harbor microorganisms

- Minimal dead legs: Connections and cavities are minimized to eliminate areas where product or cleaning solutions might stagnate

- Crevice-free construction: Joints and connections are designed to prevent gaps where contaminants could accumulate

Material Selection

Materials used in sanitary valves must meet several criteria:

1. Corrosion resistance: Must withstand aggressive cleaning agents like caustic and acidic solutions

2. Non-reactive: Should not interact with or leach into pharmaceutical products

3. Mechanical properties: Must maintain integrity under process conditions including temperature and pressure variations

4. Cleanability: Surface characteristics must allow effective cleaning and sterilization

Common materials include:

- Stainless steel grades: 316L is most common due to its excellent corrosion resistance and cleanability

- Elastomers: FDA-compliant materials like EPDM, FKM (Viton), and silicone for seals and diaphragms

- Polymers: PTFE and PFA for linings and certain seal applications

Types of Sanitary Valves and Their Applications

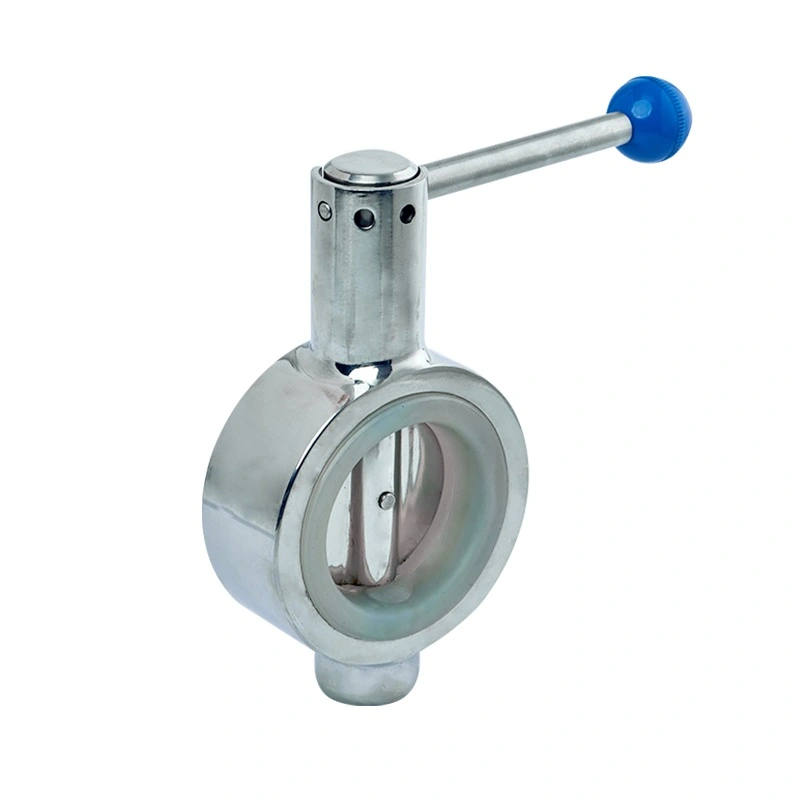

Butterfly Valves

Sanitary Butterfly Valves are widely used in pharmaceutical applications due to their simple design and ease of cleaning. Key features include:

- Wafer-style design that fits between flanges without creating dead spaces

- Pneumatic or manual actuation options

- Zero dead space versions available for ultra-clean applications

Applications:

- Bulk product transfer lines

- Water-for-injection (WFI) systems

- Clean-in-place (CIP) return lines

Diaphragm Valves

Diaphragm valves offer exceptional cleanliness and are considered the gold standard for many critical pharmaceutical processes:

- Weir-type design provides positive shut-off and prevents product entrapment

- Diaphragm isolates the process fluid from the valve mechanism

- Available in multi-port configurations for complex piping arrangements

Applications:

- Sterile filtration systems

- Bioreactor feed and harvest lines

- Aseptic filling operations

- High-purity water systems

Ball Valves

Sanitary Ball Valves have evolved significantly to meet pharmaceutical requirements:

- Full-port design ensures minimal pressure drop and complete drainage

- Polished internals with electropolished surfaces for high cleanliness

- Cavity-free designs eliminate potential contamination sites

Applications:

- Process utility lines

- Solvent distribution

- Gas delivery systems

Check Valves

Sanitary Check Valves prevent backflow in critical systems:

- Spring-assisted designs ensure positive closure

- Quick-disconnect capabilities for easy inspection and cleaning

- Vertical or horizontal mounting options

Applications:

- Pump discharge protection

- Multiple-product manifolds

- Sterile barrier maintenance

Control Valves

Precision control valves for pharmaceutical applications feature:

- Sanitary trim designs that maintain hygienic standards

- High-resolution positioning for accurate flow control

- Material compatibility with diverse process fluids

Applications:

- Buffer preparation systems

- Fermentation process control

- Chromatography skid flow regulation

Regulatory Considerations and Standards

cGMP Requirements

Current Good Manufacturing Practice (cGMP) regulations significantly impact sanitary valve design and implementation:

- Material certifications: Documentation of material composition and compliance

- Surface finish requirements: Typically electropolished to 15-20 Ra microinches or better

- Cleanability validation: Demonstration of effective cleaning procedures

- Traceability: Complete documentation of materials, manufacturing processes, and testing

Industry Standards

Key standards governing sanitary valves include:

- ASME BPE (Bioprocessing Equipment): Defines materials, dimensions, surface finishes, and other critical parameters

- 3-A Sanitary Standards: Focuses on dairy and food applications but often referenced in pharma

- ISO 2852: Specifies dimensions and requirements for aseptic clamp-type couplings

- FDA 21 CFR: Regulations regarding materials in contact with pharmaceutical products

Validation Requirements

Pharmaceutical valve installations require extensive validation:

1. Design Qualification (DQ): Confirms design meets user requirements and regulatory standards

2. Installation Qualification (IQ): Verifies proper installation according to specifications

3. Operational Qualification (OQ): Tests valve performance under normal operating conditions

4. Performance Qualification (PQ): Demonstrates consistent performance in actual process conditions

Special Considerations for Biotech Applications

Sterilization Methods

Sanitary valves must accommodate various sterilization techniques:

1. Steam Sterilization (SIP)

- Must withstand 121°C or higher temperatures

- Proper thermal expansion considerations

- Validation of sterilization hold times

2. Chemical Sterilization

- Compatibility with hydrogen peroxide, peracetic acid, and other agents

- Material resistance to oxidative degradation

3. Gamma Radiation

- For single-use systems and components

- Material stability under radiation exposure

Single-Use Systems

The growing adoption of single-use technologies has led to:

- Disposable valve assemblies for specific process steps

- Hybrid systems combining traditional and single-use components

- Specialized materials for plastic valves in bioprocessing

Containment Requirements

For handling potent compounds and biologics:

- Double-sealed designs for additional leakage protection

- Integral sampling ports for safe product testing

- Closed-system integration with other processing equipment

Installation and Maintenance Best Practices

Proper Installation Techniques

Correct installation is crucial for maintaining sanitary conditions:

- Alignment: Proper alignment prevents stress and potential crevice formation

- Gasket selection: Appropriate material for process conditions

- Torque specifications: Proper flange tightening to avoid distortion

- Slope considerations: Ensuring proper drainage in piping systems

Cleaning Procedures

Effective cleaning protocols include:

1. Clean-in-Place (CIP)

- Verification of spray patterns and coverage

- Flow rate requirements for effective cleaning

- Temperature and concentration parameters

2. Manual Cleaning

- Disassembly procedures

- Inspection criteria

- Reassembly protocols

Maintenance Strategies

Preventive maintenance programs should address:

- Seal replacement schedules

- Actuator maintenance

- Surface inspection for scratches or corrosion

- Lubrication requirements (using FDA-approved lubricants)

Emerging Trends and Future Developments

Smart Valve Technologies

Integration of sensors and connectivity features:

- Position feedback for automated systems

- Temperature monitoring for sterilization cycles

- Integrity testing capabilities

- Predictive maintenance through performance analytics

Advanced Materials

Innovations in material science impacting valve design:

- Improved elastomers with longer service life

- Ceramic components for enhanced wear resistance

- Nanocoatings for superior surface properties

Sustainability Initiatives

Environmental considerations driving changes:

- Reduced water consumption in cleaning processes

- Energy-efficient actuation systems

- Recyclable materials for disposable components

Modular and Compact Designs

Space optimization and flexibility needs leading to:

- Integrated valve manifolds

- Compact actuation solutions

- Quick-change assemblies for flexible manufacturing

Conclusion

Sanitary valves represent a critical component in pharmaceutical and biotech manufacturing, where product quality and patient safety are directly impacted by equipment performance. The specialized design features, material selections, and validation requirements for these valves reflect the unique challenges of these industries.

As pharmaceutical processes become more complex and regulatory expectations continue to rise, sanitary valve technology must evolve accordingly. Future developments will likely focus on enhanced cleanability, greater integration with process control systems, and improved sustainability—all while maintaining the stringent hygienic standards that define this essential category of process equipment.

The proper selection, installation, and maintenance of sanitary valves remain fundamental to ensuring product quality, operational efficiency, and regulatory compliance in pharmaceutical and biotechnological manufacturing environments. By understanding the principles and applications discussed in this overview, professionals can make informed decisions regarding sanitary valve implementation in their facilities.
