sanitary diaphragm valve: Function, Design, and Applications

Introduction

A sanitary diaphragm valve is a specialized type of valve designed for industries requiring strict hygiene standards, such as pharmaceuticals, food and beverage, biotechnology, and dairy processing. Unlike conventional valves, sanitary diaphragm valves are constructed to prevent contamination, facilitate easy cleaning, and ensure sterility in fluid-handling systems.

This article explores the design, working principle, advantages, and applications of sanitary diaphragm valves in detail.

---

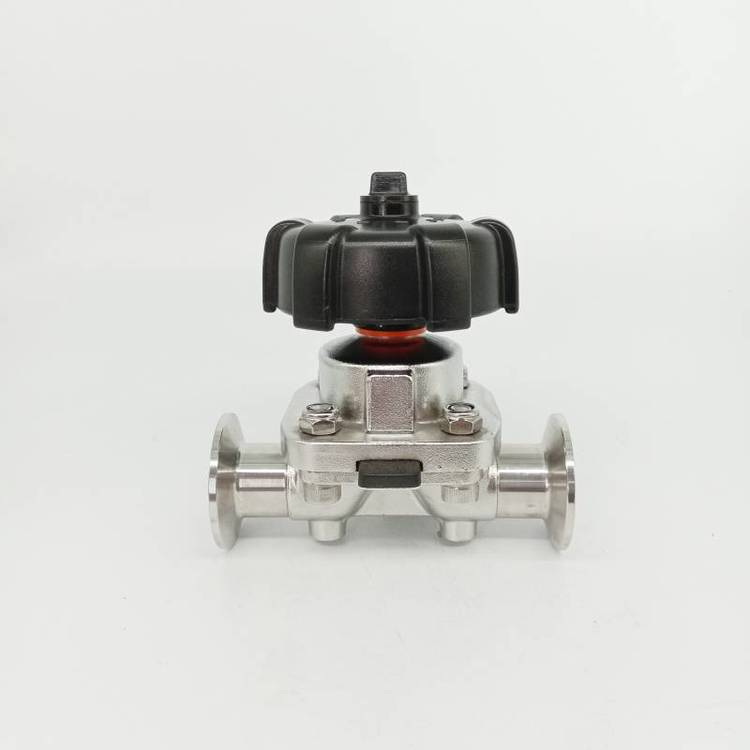

1. What is a Sanitary Diaphragm Valve?

A diaphragm valve is a linear motion valve that uses a flexible diaphragm to control fluid flow. In sanitary applications, these valves are designed with smooth, crevice-free surfaces to meet stringent hygiene requirements.

Key Features of Sanitary Diaphragm Valves:

- Hygienic Design: Made from high-grade stainless steel (typically 316L) or other corrosion-resistant materials.

- Smooth Surfaces: Polished interior surfaces (Ra ≤ 0.8 µm) to prevent bacterial buildup.

- Diaphragm Seal: A flexible elastomer or PTFE diaphragm isolates the fluid from mechanical components.

- Easy Cleaning: Designed for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.

- Zero Dead Legs: Minimizes stagnant areas where contaminants could accumulate.

---

2. How Does a Sanitary Diaphragm Valve Work?

Basic Working Principle

A diaphragm valve operates by compressing or releasing a flexible diaphragm against a weir or seat to regulate fluid flow. The diaphragm acts as a barrier between the process fluid and the valve’s mechanical parts, ensuring contamination-free operation.

Components of a Sanitary Diaphragm Valve

1. Body: Typically made of stainless steel, with tri-clamp or weld connections for sanitary fittings.

2. Diaphragm: A flexible membrane (usually PTFE, EPDM, or silicone) that seals the flow path.

3. Bonnet: Houses the actuator mechanism.

4. Actuator: Manual, pneumatic, or electric mechanism that moves the diaphragm.

5. Seat/Weir: The raised surface against which the diaphragm seals to stop flow.

Operation Mechanism

1. Open Position:

- The actuator lifts the diaphragm away from the seat, allowing fluid to flow.

- The diaphragm flexes upward, creating an unobstructed flow path.

2. Closed Position:

- The actuator pushes the diaphragm downward, pressing it against the seat.

- The diaphragm forms a tight seal, preventing fluid passage.

3. Throttling (Partial Flow Control):

- By adjusting the diaphragm position, the valve can regulate flow rates precisely.

---

3. Types of Sanitary Diaphragm Valves

A. Based on Body Design

1. Weir-Type Diaphragm Valve

- Features a raised weir (saddle) that the diaphragm seals against.

- Ideal for low-pressure applications and viscous fluids.

- Common in food, beverage, and pharmaceutical industries.

2. Straight-Through (Full-Bore) Diaphragm Valve

- No weir; the diaphragm seals directly against the valve body.

- Suitable for slurries, high-purity fluids, and CIP/SIP processes.

- Used in biotechnology and semiconductor manufacturing.

B. Based on Actuation

1. Manual Diaphragm Valves

- Operated by a handwheel or lever.

- Cost-effective for low-frequency operations.

2. Pneumatic Diaphragm Valves

- Uses compressed air to actuate the diaphragm.

- Enables automated process control.

3. Electric Diaphragm Valves

- Motor-driven for precise flow control.

- Used in fully automated systems.

---

4. Advantages of Sanitary Diaphragm Valves

1. Hygienic & Contamination-Free

- The diaphragm isolates the fluid from mechanical parts, preventing contamination.

- No internal crevices where bacteria or particles can accumulate.

2. Easy to Clean & Sterilize

- Compatible with CIP/SIP processes.

- Smooth surfaces allow thorough cleaning without disassembly.

3. Corrosion & Chemical Resistance

- Stainless steel body and PTFE/EPDM diaphragms resist aggressive chemicals.

4. Bubble-Tight Shutoff

- Ensures leak-proof sealing, critical in sterile processes.

5. Low Maintenance

- Fewer moving parts reduce wear and tear.

6. Versatility

- Handles liquids, gases, slurries, and viscous fluids.

---

5. Applications of Sanitary Diaphragm Valves

A. Pharmaceutical & Biotechnology

- Used in sterile processing, vaccine production, and biopharmaceutical manufacturing.

- Ensures compliance with GMP (Good Manufacturing Practice) and FDA regulations.

B. Food & Beverage

- Controls flow in dairy, brewing, and juice processing.

- Prevents bacterial contamination in milk, beer, and soft drink production.

C. Cosmetics & Personal Care

- Manages creams, lotions, and perfumes in hygienic conditions.

D. Water & Wastewater Treatment

- Used in ultrapure water systems and chemical dosing.

E. Semiconductor & Electronics

- Ensures particle-free fluid handling in wafer fabrication.

---

6. Selection Criteria for Sanitary Diaphragm Valves

When choosing a sanitary diaphragm valve, consider:

1. Material Compatibility (SS316L, PTFE, EPDM, etc.)

2. Pressure & Temperature Ratings

3. Connection Type (Tri-clamp, weld, flange)

4. Diaphragm Material (PTFE for chemicals, EPDM for steam)

5. Actuation Method (Manual, pneumatic, electric)

6. Compliance with Industry Standards (ASME BPE, 3-A, EHEDG)

---

7. Maintenance & Troubleshooting

Common Issues & Solutions

- Diaphragm Wear: Replace periodically (lifespan depends on chemical exposure).

- Leakage: Check for diaphragm damage or improper seating.

- Sticking Valve: Clean or replace the diaphragm if hardened.

Best Practices

- Regular CIP/SIP cycles to maintain hygiene.

- Inspect diaphragms for cracks or deformations.

- Follow manufacturer guidelines for maintenance intervals.

---

8. Conclusion

Sanitary diaphragm valves are essential for industries requiring contamination-free fluid handling. Their hygienic design, reliable sealing, and ease of cleaning make them ideal for pharmaceuticals, food processing, and biotechnology.

By understanding their working principle, types, and applications, engineers and operators can select the right valve for their needs, ensuring efficiency, safety, and regulatory compliance.

---

This comprehensive guide covers the fundamentals of sanitary diaphragm valves, helping professionals make informed decisions in fluid control systems. If you have further questions, consult industry standards or valve specialists for tailored recommendations.
